SPECIAL DESIGN FOR BELLOWS DAMPERS
PTFE BELLOWS PULSATION DAMPER WITH DOUBLE CIRCUIT CONNECTION
To work on circuits that have input and output connections for the pulsation dampers. This design improves the dampening efficiency, especially in circuits with high speed pumps.

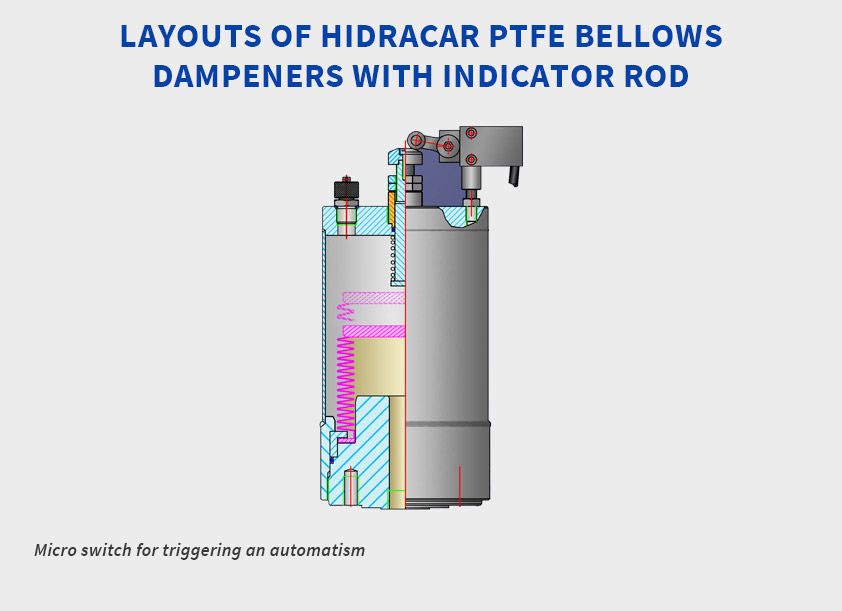

PTFE BELLOWS PULSATION DAMPER WITH ROD INDICATOR
Allows the pulsation damper to indicate the breakage of the bellows. Through the optional implementation of a electrical switch, an electrical signal can be transmitted if bellows breakage occurs.
STAINLES STEEL BELLOWS PULSATION DAMPER WITH HEATING JACKET
We can incorporate heating jackets to all our bellows models, to keep the process liquid at the right temperature.
STAINLES STEEL BELLOWS PULSATION DAMPER FOR HIGH PRESSURES AND TEMPERATURES
To work on circuits at high temperature and pressure, an auxiliary accumulator is attached to the stainless steel bellows damper. Therefore the stainless steel bellows cannot be damaged during pre-charge. Thermal oil is used to transfer the pressure between the top damper and the bellows which act as a dampening transmittal.
An auxiliary bladder accumulator is used to work with a medium-high temperature processing liquid, if the temperature processing liquid is higher (170 ° C to 200 ° C) an auxiliary PTFE membrane accumulator ought to be placed (resistant to a higher temperature).
STAINLES STEEL BELLOWS PULSATION DAMPER FOR HIGH PRESSURES AND TEMPERATURES WITH HEATING JACKET
To work in circuits at high temperature and pressure equipped with a heating jacket to keep the processing liquid at high temperature. An auxiliary accumulator is attached to the bellows damper. Therefore the stainless steel bellows cannot be damaged during precharge. Thermal oil is used to transfer the pressure between the top damper and the bellows which act as a dampening transmittal.
